IRIS cylindrical screen system

designed for a single or multi-channel projection systems

on a smaller diameters.

FOV 120°

FOV 180°

or custom made  cylindrical screen system

ready-to-assembly modular screen system

FEATURES
TECHNICAL
INCLUDED
Show More

AGRONN's motion and fixed-base curved screen systems are available for smaller diameters in a design format that allows assembly on site.

Excellent for

TRAINING SIMULATORS

Flight, Driving, Military

GAMING

ENTERTAINMENT
EDUCATION
GOVERNMENT PROJECTS

AIRPORT

SHOPPING CENTER

HOTEL

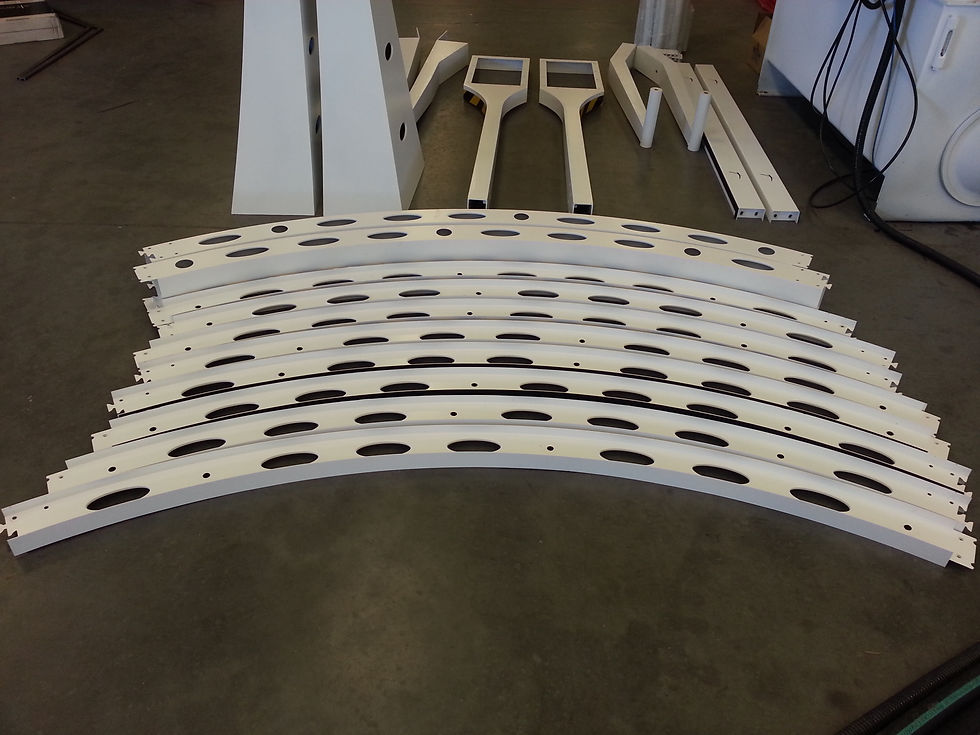

AGRONN's single or multi-channel curved screen system, a high quality laser cut metal sheet technology is applied to the frame that is specially manufacture to ensure that the complete system has the best quality and rigidity. From 120° to 180° curved shape of the standard seamless screens are available for multi-channel projection screens depending to application.

System          ready-to-assembly on site

Diameters    4000 & 4500mm

Frame           120mm thickness

                       2100mm height

Screen H      1800mm

Framework   laser cut metal construction

Finishing       powder coated painting

Fastening     m8 hex head flange bolt + rivet nut

Fixing            self-standing unit **

** some applications requires fixing

Screen Specifications

Material         seamless polyester fabric

                        or powder coated metal sheet

FOV                120° or 180°
Brightness     1 gain
Installation     special streching application

Complete steel frame

Seamless polyester screen

Screen tensioner clamps

Screws

Manual

Optional

Power and display cabling

Floor, ceiling and totem fixing

Projector housing for ceiling

Projector housing ventilation

Monitor hangers

Support

Installation on request

Standart product delivery is in 4 weeks

2 year warranty

Extended warranty also applicable

NOTICE

Any degree and size of the screens are available on a custom made order.
